This Is How Fabric Dyeing Really Happens

In the apparel manufacturing industry, fabric dyeing is a vital process that transforms plain fabrics into vibrant and visually appealing materials while meeting specific design requirements. The term “dye” has deep origins, stemming from Old French (word die), shaped by Middle English (word dye), and rooted in Old English (dag) with links to Proto-Indo-European roots meaning “to color” or “to stain.”

In this article, you’ll explore how different dyeing methods can shape the look, feel, and performance of fabrics, helping your clothing line stand out while strengthening brand perception.

Common Dyeing Methods in the Textile Industry

A broad range of methods can achieve successful dyeing of fabrics. Here are six different textile dyeing methods.

1. Batik

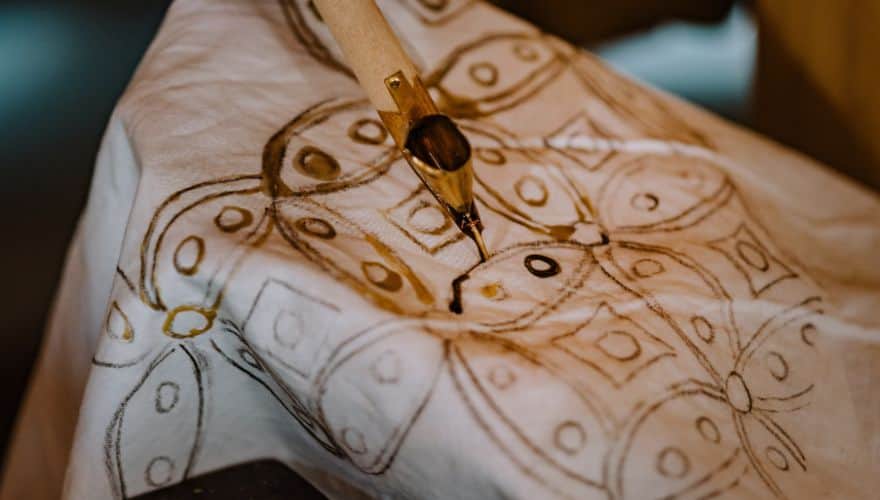

Batik is a resist-dyeing technique that has been originating from Java, Indonesia, and is still recognized as one of the most traditional dyeing methods. The process involves applying wax to certain areas of the fabric, so those parts resist absorbing color during the dye bath. This careful covering creates lighter and darker sections, often producing intricate designs with different shades that look both decorative and immersive.

By layering wax and repeating the steps, the fabric can absorb color in some parts while others stay untouched, leaving a striking contrast between unwaxed sections and dyed portions. This method traditionally produces patterns for ceremonial garments, quilting, and fashion, where repeating motifs help in producing unique decorative textiles valued for their cultural depth.

Steps in the batik-dyeing process:

1. Waxing: Hot wax is applied to outline or block certain areas of the fabric.


2. Dyeing: The fabric is dipped into a dye bath, leaving the waxed portions undyed. This can be repeated with additional colors for layered effects.


3. Wax removal: Finally, the wax is heated and removed, revealing the finished pattern.



2. Cross-Dyeing

Cross-dyeing is a method used when two or more different fiber types are present in the same fabrics. Each fiber absorbs the dye differently, which allows designers to create heathered effects, varied shades, or even stronger contrasts. It is especially common in blended fabrics like cotton-polyester or wool-silk, where the fibers involved give unique results based on how the dye interacts with them.

This approach is both efficient and cost-effective, making it popular in the apparel industry for its ability to deliver complex looks without extra printing. The effect achieved can be soft or bold, depending on the dyeing techniques chosen and the fabrics used, giving manufacturers flexibility to balance creativity with practicality.

Here’s how cross-dyeing works:

1. Preparation: A blended fabric with multiple fiber types is selected.


2. Submersion: The fabric is immersed in a dye bath containing different dye classes, each formulated for a specific fiber.


3. Dyeing: The fibers absorb the dyes according to their chemical properties, producing varied hues across the same fabric.



3. Vat Dyeing

Vat dyeing uses insoluble vat dye that must be converted into a soluble leuco form with the help of alkali and a reducing agent. This allows the fibers to absorb the dye deeply. Once applied, the dye is oxidized by air or an oxidizing agent like hydrogen peroxide, converting it back to its insoluble form.

The crystalline structure formed during oxidation makes the color highly resistant to light and washing, providing excellent fastness.

Here’s how vat dyeing works:

• Rinsing, Soaping, and Washing: After dyeing, the fabric undergoes rinsing, soaping, and washing with detergent to remove excess surface pigments.


• Fixing: Ensures better diffusion of the dye within the fibers and enhances brightness of the color.


• Source of Dyes: Vat dyes can be produced synthetically or extracted from plants.


• Applications:  Widely used for shirts, towels, upholstery, and awnings because they result in durable fabrics.


• Leuco Dye Behavior: The ability of the leuco dye to reorient inside the fiber ensures uniform shades, while fixing agents improve performance and longevity.



4. Yarn Dyeing

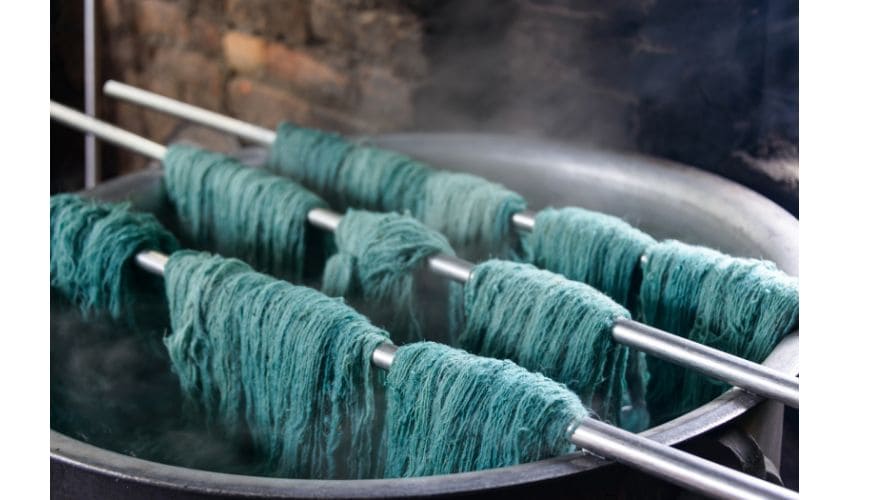

Yarn dyeing involves coloring the yarn before it is spun into fabric, whether knitted or woven, allowing precise creation of patterns like stripes, plaids, or gingham. Certain sections of the fabric can be dyed partially, producing unique sectional effects and woven effects.

Denim is a well-known example, where white filling yarns are combined with blue-dyed warp yarns, creating uniform color with a distinctive visual texture. This application ensures that colors are consistent and beautifully combined for both aesthetic and functional designs.

Package dyeing (common yarn dyeing method):

1. Dyeing: The yarn is wound onto perforated tubes or spools called packages. Each weighs between 500 grams and 2 kilograms. The packages can contain cotton, polyester, acrylic, or viscose yarns. They are placed in a cylindrical dyeing vessel with vertical spindles. The dye solution is forced alternately from the outside in and inside out. This ensures even penetration.


2. Yarn removal: Once dyed, the yarn is ready for weaving or knitting into fabric, creating solid or patterned textiles.



5. Piece Dyeing

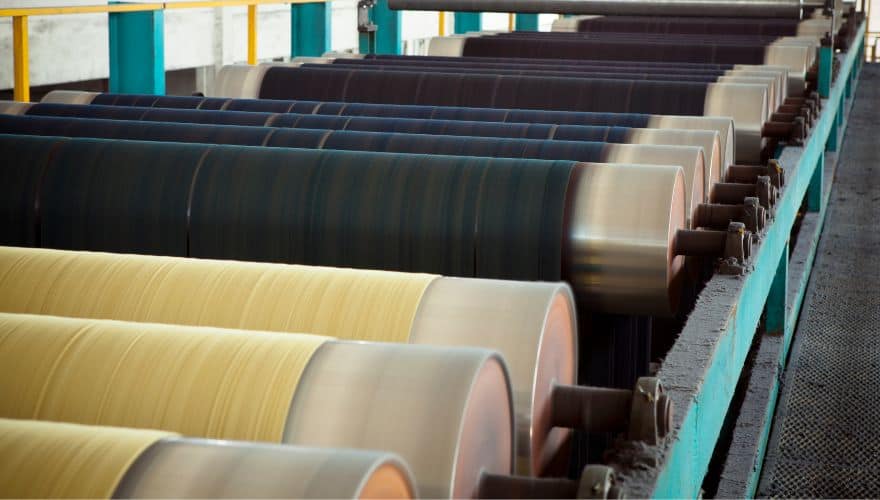

Piece dyeing is a method commonly used for cotton fabrics, where a large, continuous sheet of dry cloth is dyed after it has been woven, knitted, or sometimes cut and sewn into a finished garment. The cloth is passed through a trough of hot dye solution and then moved between padded rollers that squeeze out excess liquid while uniformly distributing color across the surface.

This process is generally applied when a single, uniform color is intended, giving a smooth and even finish. For darker shades, a longer dyeing time is required to ensure penetration and improve colorfastness.

In some cases, the textile is processed in a rope-like coil that is wound on a reel and continuously moves in and out of the dye vat, allowing thorough, even coloration. While this step is sometimes mistakenly referred to as solution dyeing, true solution dyeing actually occurs during fiber extrusion, not on a fabric or finished garment.

6. Solution Dyeing

The manufacturer adds pigment directly to the liquid polymer solution before the filaments are spun into yarn. This makes the color go throughout the fibers instead of just sitting on the surface, giving a long-lasting appearance and the brightest colors possible.

Gears Sphere manufactures apparel and dyes fabrics this way, especially polyester and acrylic, which maintain their look even after months of use under strong sunlight, thanks to UV resistance.

This method has several advantages over traditional dyeing. It reduces energy use, produces no water by-products, and lowers carbon dioxide emissions, making it a more sustainable choice.

Because the color is built into the fiber, the practical benefits include less fading and a better overall finish. Solution dyeing creates fabrics that are vivid, durable, and ideal for synthetic fabrics in sportswear, streetwear, and other modern textiles.

Applications of Fabric Dyeing

Fabric dyeing is at the core of every custom clothing project, shaping how your designs come to life. Depending on the category, different dyeing techniques are used to achieve durability, comfort, and vibrant color. Here’s how it applies across key sectors:

1. Sportswear
   From soccer jerseys, basketball uniforms, swimsuits, to gym wear, dyeing techniques like sublimation and disperse dyeing ensure bold colors that can withstand sweat, sunlight, and frequent washing. For performance fabrics such as polyester and nylon, solution dyeing is preferred because the color penetrates the fiber, making it more durable and fade-resistant.

2. Streetwear
   In products like hoodies, sweatshirts, t-shirts, and tracksuits, dyeing helps achieve unique tones, washes, and effects that define brand identity. Pigment and garment dyeing are widely used in streetwear to create a washed-out, vintage aesthetic with a worn-in feel.

3. Uniforms
   Whether it’s school uniforms, corporate wear, or industrial workwear, dyeing needs to focus on color consistency and durability. Reactive dyeing and vat dyeing are commonly applied to cotton fabrics to ensure resistance against repeated washing and outdoor exposure.

4. Fashion Apparel
   For high-end fashion collections and seasonal lines, dyeing provides flexibility to experiment with colors, gradients, and patterns. Techniques like piece dyeing, yarn dyeing, and batik bring versatility to fabrics ranging from cotton to silk, helping designers achieve unique finishes.
